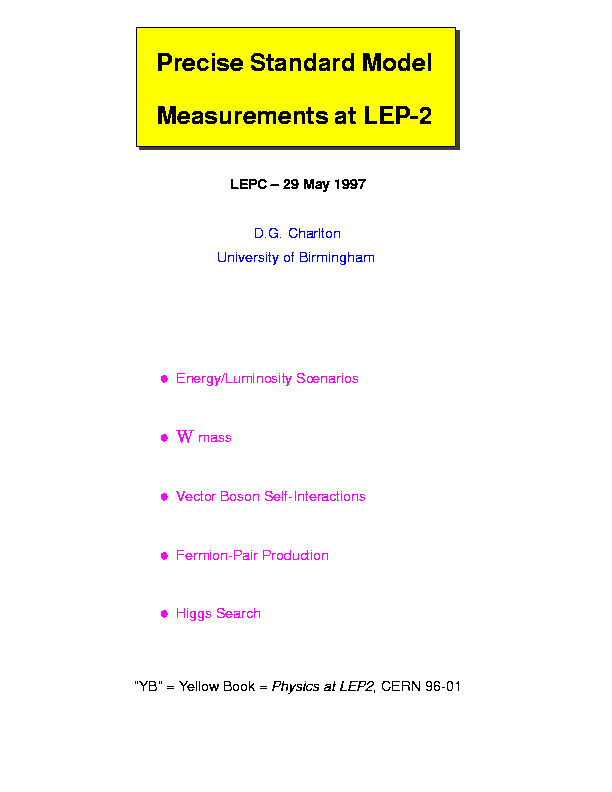

LEPC Presentation 29/5/97: Precise Standard Model Measurements at LEP-2, by Dave Charlton

A single gzipped PS file with all the slides of the presentation is available. Alternatively, you can click on any of the images below to see a large version of each page.

There are also separate PS files of the main plots:

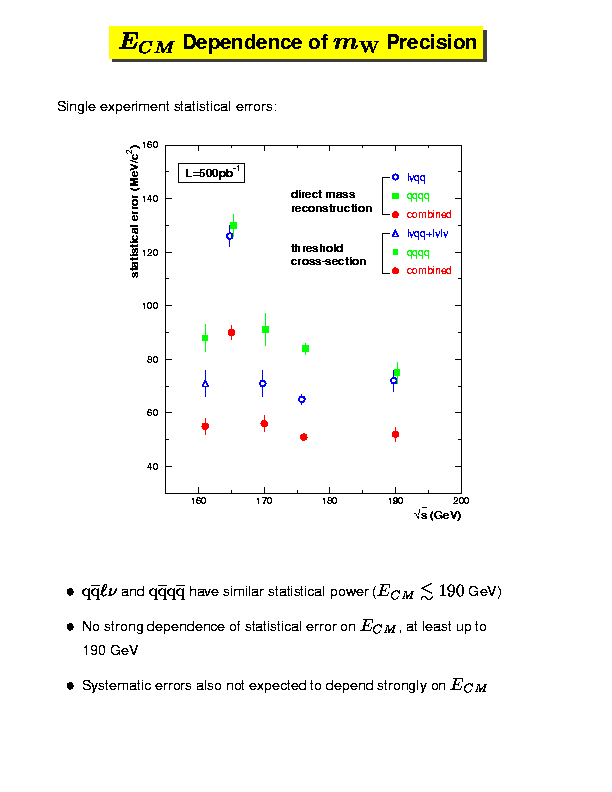

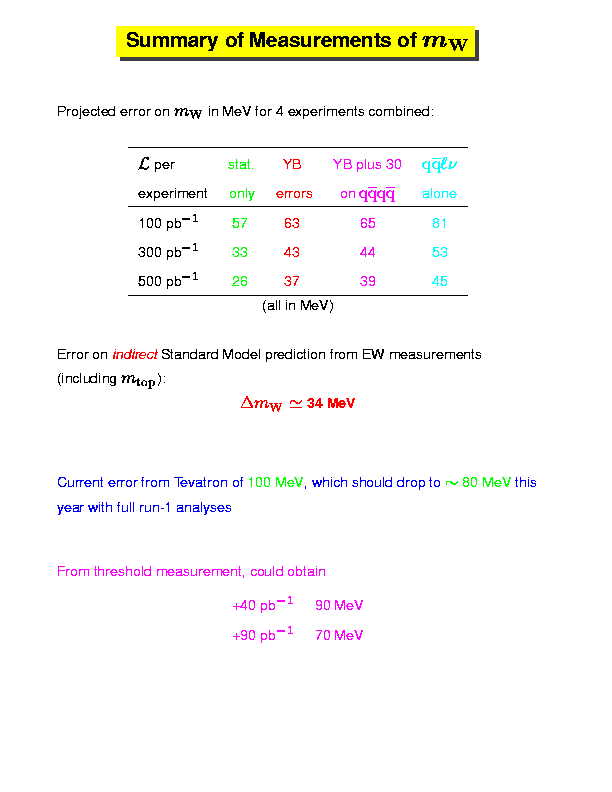

M_W precision as a function of E_CM (from Yellow Book)

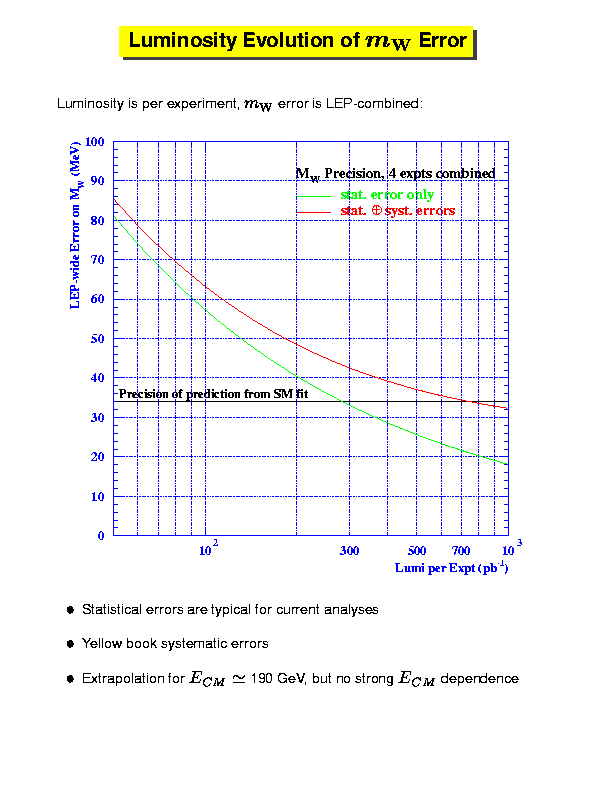

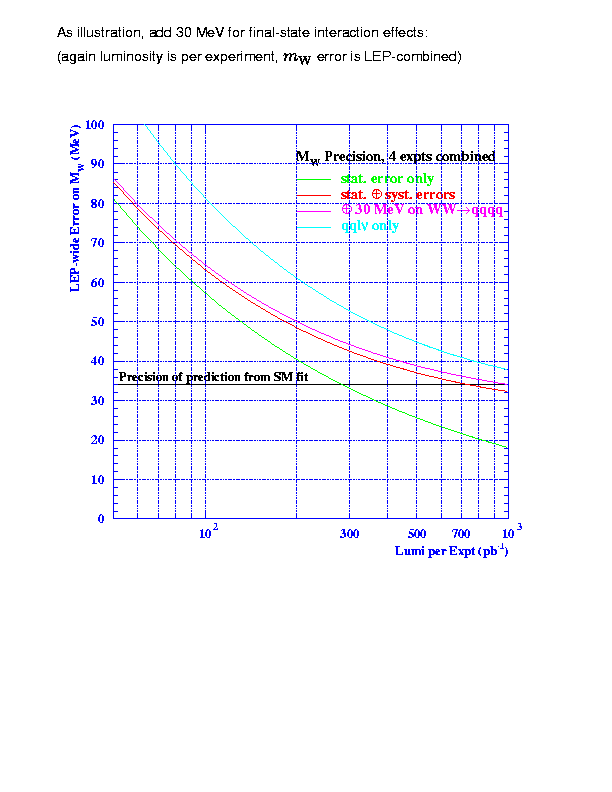

M_W precision as a function of luminosity
M_W vs. M_top (from C.Paus)

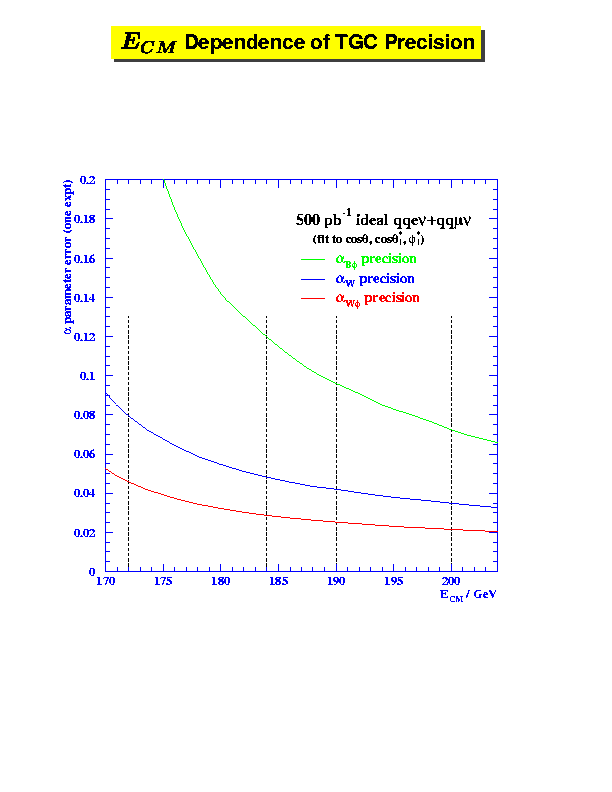

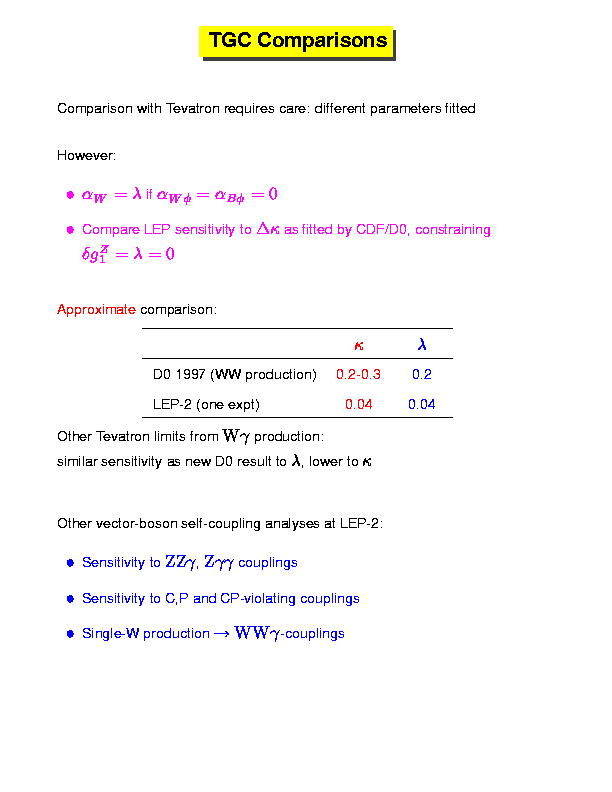

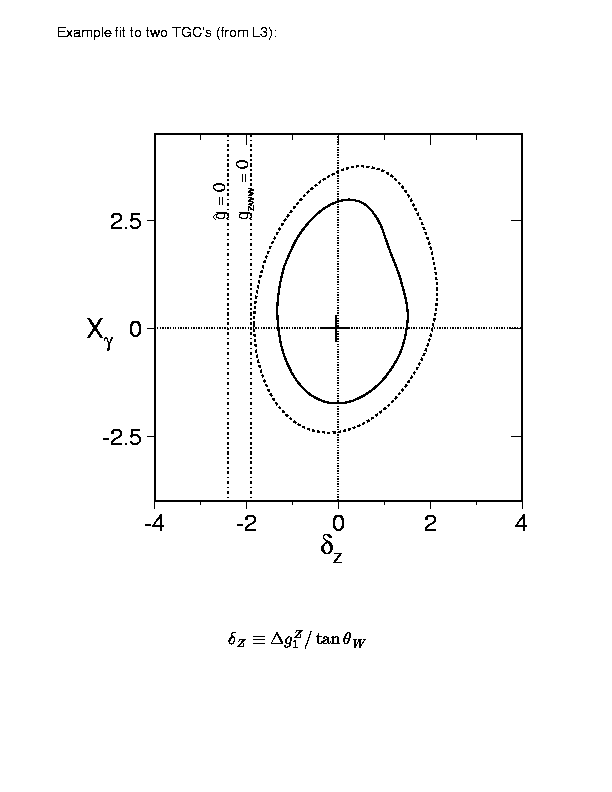

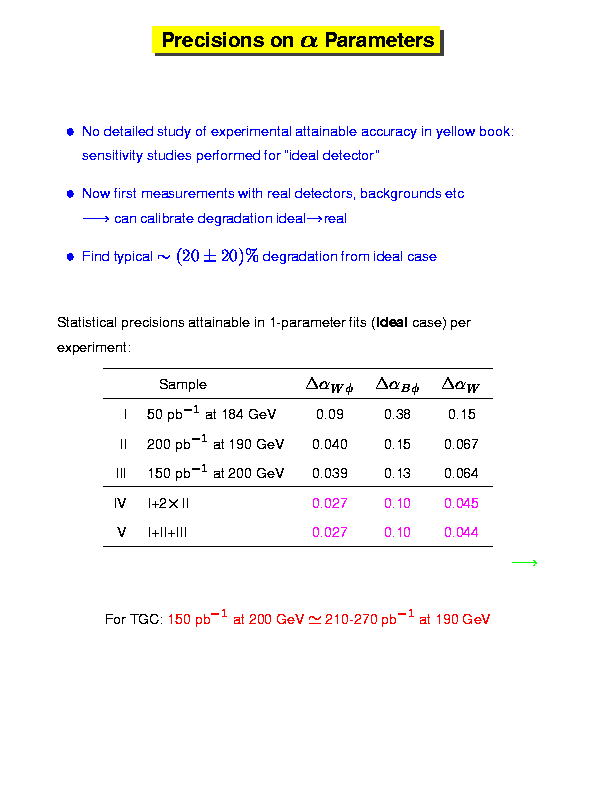

Anomalous coupling precisions vs E_CM

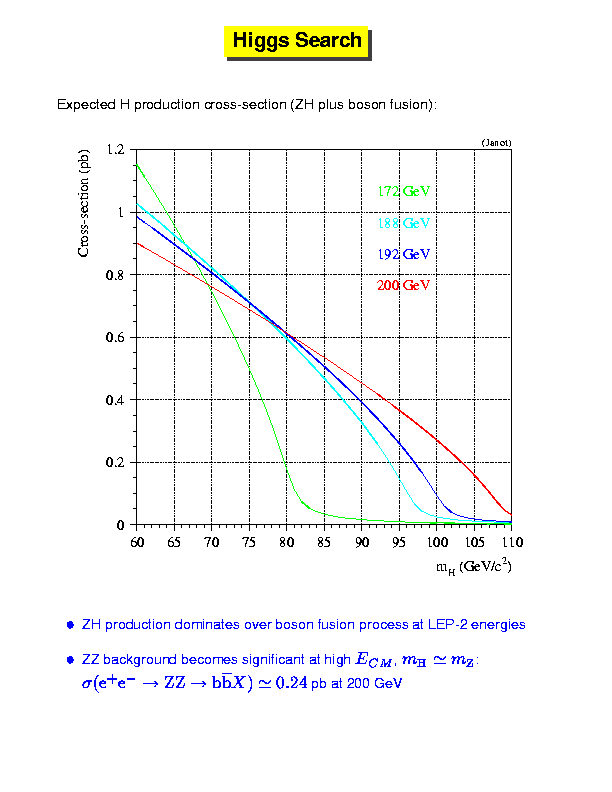

Higgs cross-section vs. M_H (from P.Janot)

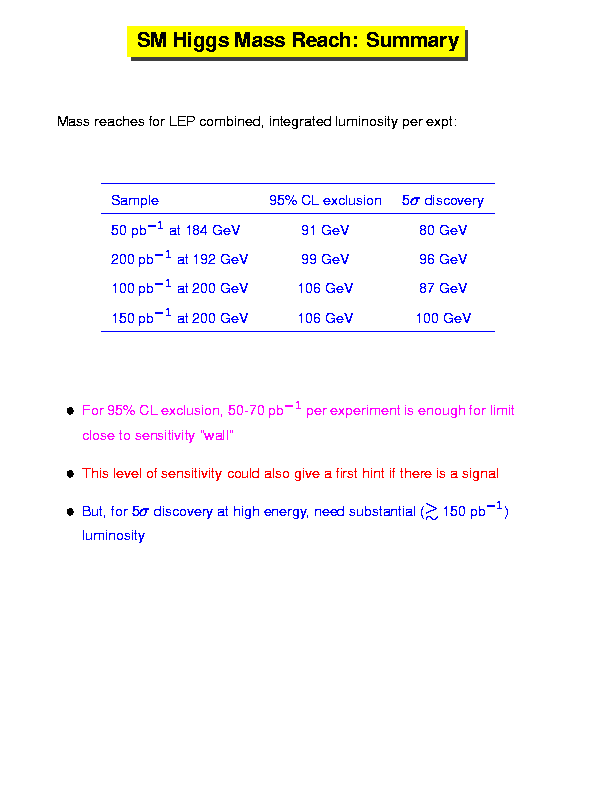

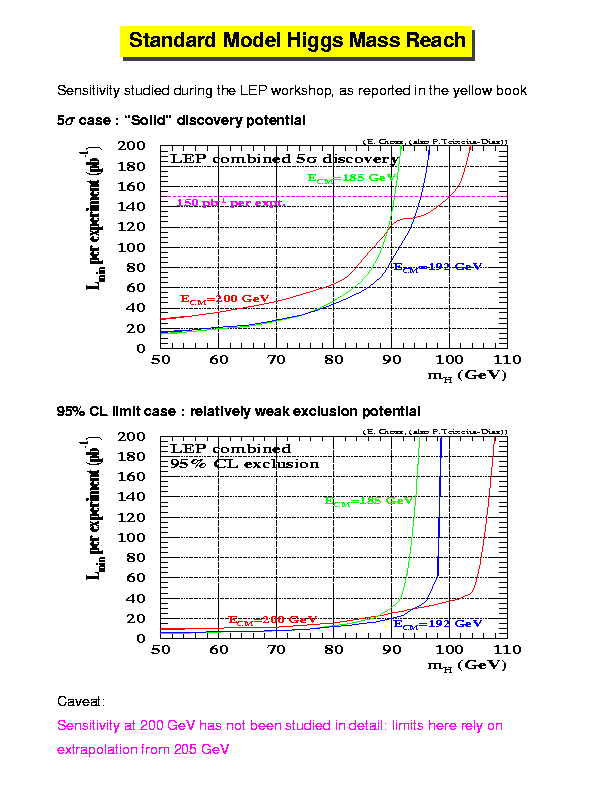

Higgs mass reach (5 sigma) for E_CM=185,192 and 200 GeV (from E.Gross)
Higgs mass reach (95% CL) for E_CM=185,192 and 200 GeV (from E.Gross)
